Solar PV

Sova Solar SS265P_60

Available in 250 / 255 / 260 / 265 Watts
Multi-Crystalline 156mm x 156mm (6 inches)
60 cells (6 x 10)
1639mm x 982mm x 42mm
18.5kg
Reinforced Anodized Aluminium Frame
ARC toughened high light transmission glass
IP65/ IP67 Rated
Solar MC4 compatible
learn more

Sova Solar SS320P_72

Available in 300 / 305 / 310 / 315 / 320 Watts
Multi-Crystalline 156mm x 156mm (6 inches)
72 cells (6 x 12)
1955mm x 982mm x 42mm
22.1kg
Reinforced Anodized Aluminium Frame
ARC toughened high light transmission glass
IP65/ IP67 Rated
Solar MC4 compatible
learn more

DS Tech M6-6000

DS Tech M6-6000
Available in 240 / 250 / 260 / 270 Watts
Mono-Crystalline 156mm x 156mm (6 inches)
60 cells (6 x 10)
1638mm x 995mm x 40mm
18.7kg
Anodized aluminium alloy
PV grade tempered glass
IP65 Rated
PV Cable 4.0mm/MC4 compatible
learn more

DS Tech P6-6000

Available in 230 / 240 / 250 / 260 Watts
Poly-Crystalline 156mm x 156mm (6 inches)
60 cells (6 x 10)
1638mm x 995mm x 40mm
18.7kg
Anodized aluminium alloy
PV grade tempered glass
IP65 Rated
PV Cable 4.0mm/MC4 compatible
learn more

DS Tech 72S

Available in 300 / 310 / 320 Watts (Mono) and 290 / 300 / 310 (Poly)
Mono Crystalline / Poly-Crystalline Photovoltaic Modules
72 cells (6 x 12)
1955mm x 996mm x 50mm
23.5kg
Anodized aluminium alloy
4.0 mm low iron PV grade tempered glass
IP65 Rated, UL Listed (IEC certified)
3 bypass diodes to minimize power decrease resulted by shade
IP65 Rated, UL Listed (IEC certified)
PV Cable 4.0mm (12AWG)
learn more

E-Solar ESP6-60

Available in 245 / 250 / 255 / 260 / 265 / 270 / 275 / 280
60 cells (6 x 10)
1650(L) x 991(W) x 40/35A(H)mm
18.5/16.2kg+-0.5%
Anodized aluminium alloy
3 Bypass diodes
MC-4 compatible cable
Class A Grade
5400PA Snow resistance
2400PA Wind resistance
learn more

E-Solar ESP6-72

Available in 295 / 300 / 305 / 310 / 315 / 320 / 325
72 cells (6 x 12)
1956(L) x 991(W) x 50/40A(H)mm
25.6/23.6kg+-0.5%
Anodized aluminium alloy
3 Bypass diodes
MC-4 compatible cable
Class A Grade
5400PA Snow resistance
2400PA Wind resistance
learn more

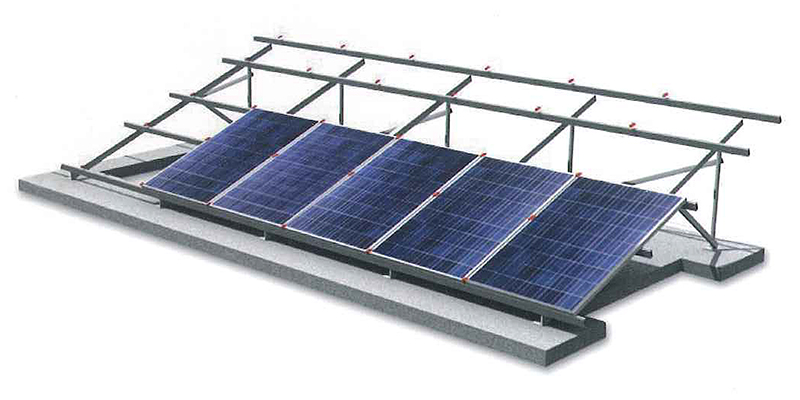

HENGS Sunup G/R Series

Positive Pressure : P=139 Kg/m²
Negative Pressure : P=144 Kg/m²
Maximum Axial Force : Pmax=142.75 Kg
Safe Load Limit : 500 Kg
Maximum Shear : 420 Kg
Coef of Linear Expansion : 2.16×10^-5
Warranty : 5 Years
Material : Aluminium Alloy 6063-T5
External Treatment : Anodized Treatment>7μ+Acrylic Coating
Screw #304 Stainless Steel Screw
Strength of Wind Resistance : Max 55m/s
(Authenticated by structure engineer)
Assembly Efficiency : 1Kw=1 hourly performance per technician
(based on 240PV module)
Weight : G Series-18Kg/Kw and R Series-15Kg/Kw
Suitable Latitude : 0-40
Supplier: Hengs Technology, Taiwan
learn more

Solar Pro 4.3

3D CAD design
Simulation wizard
Roof plan input
Bing map integration
Import/Export CAD file
Shading animation
Module level IV Curve calculations
Photon database support
TMY3, Meteonorm, METPV, Monsola-11, Solar GIS weather data
Calculate loss factors
Generate detailed report
Print layout/ report
Supplier: Laplace System, Japan
Supplier Website

Solar Link ARCH

Real time remote monitoring of power generation equipment and site conditions
Monitor multiple inverters and devices at a single or many sites
Configurable multi-level email alerts
Inverter direct monitoring and inverter control
Consumption monitoring
String-level monitoring
Webcam
Data download
Performance metric and fault diagnosis
Configurable performance thresholds and alerts
Supplier: Laplace System, Japan
Supplier Website

Solar Link ZERO Terminal

Collect inverter data (up to 10 inverters per ZERO terminal)
Collect string level PV generation data
Collect weather station, meter and webcam data
Integrated data logger and internet gateway
RS-485, RS-232, serial, USB, Ethernet and DVI-D video ports
Kiosk mode with customizable display
Display PV System performance and environmental benefits
Detailed failure history log
Up to 8Gb of data storage
Wi-Fi enabled device
GSM connectivity for remote locations
Supplier: Laplace System, Japan
Supplier Website
